문제1

Refer to the exhibit.

Examine the physical topology of the IS-IS network, the metrics of the links and the levels of the routers. All routers have their system interfaces included in IS-IS. Which of the following statements describes the route-table entry that router R4 will use to reach the system IP address of router R6?

A. Router R4 will have a default route with router R3 as the next-hop.

B. Router R4 will have a route to router R6's system IP address with router R2 as the next-hop.

C. Router R4 will not have a matching entry in its routing table for router R6's system IP address.

D. Router R4 will have a default route with router R2 as the next-hop.

정답: B

설명: (Fast2test 회원만 볼 수 있음)

문제2

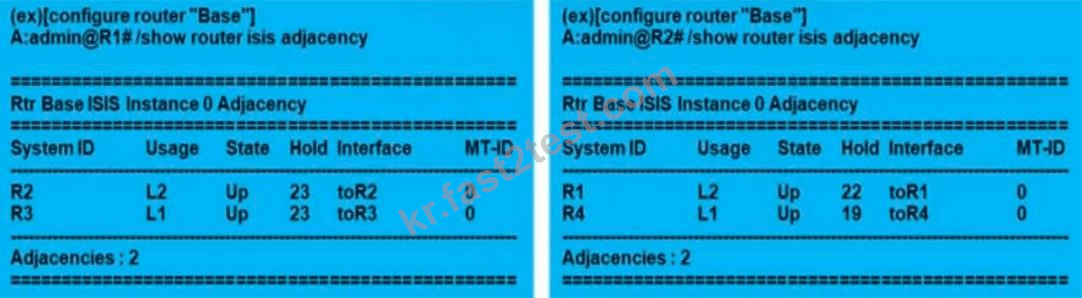

Refer to the exhibit.

Routers R1, R2, R3, and R4 are running IS-IS. Assuming all interfaces are added to IS-IS as point-to-point and no commands are issued at the interface level to restrict adjacencies, which of the following statements is TRUE?

A. All four routers are L1/L2.

B. Routers R1 and R2 are L2 routers. Routers R3 and R4 are L1 routers.

C. Routers R1 and R2 are L1/L2 routers. Routers R3 and R4 are L1 routers.

D. Routers R1 and R2 are L2 routers. Routers R3 and R4 are L1/L2 routers.

정답: C

설명: (Fast2test 회원만 볼 수 있음)

문제3

Which of the following definitions best describes route redistribution?

A. It is the process of redirecting packets to be processed by an intermediate network function before allowing them to be forwarded to their intended final destination.

B. It is the process of controlling which route advertisements received from routing peers are accepted and/or deciding which locally known prefixes are advertised to routing peers.

C. It is the process of passing routing information from one routing domain to another, which usually means from one routing protocol to another.

D. It is the process of deciding at line-rate speed which packets will be dropped and which ones will be forwarded.

정답: C

설명: (Fast2test 회원만 볼 수 있음)

문제4

Which of the following is NOT a required configuration step to successfully run IS-IS on a router?

A. Layer-3 interfaces that will participate in IS-IS need to be identified.

B. A reference bandwidth needs to be configured to calculate link costs.

C. The router needs to be associated with an IS-IS area ID.

D. The IS-IS context needs to be enabled.

정답: B

설명: (Fast2test 회원만 볼 수 있음)

문제5

A router running a link-state routing protocol detects that one of its neighbors is no longer connected to it. The router generates a new link-state advertisement to inform other routers of the topology change. Which of the following is NOT an action that is triggered by this event?

A. If a router receives the new link-state advertisement, it acknowledges it, stores it, and forwards it to its own neighbors.

B. Every router that receives the new link-state advertisement updates its age field before forwarding it.

C. If a router receives multiple copies of the new link-state advertisement, it will simply ignore all copies received after the first one.

D. Every router that receives the new link-state advertisement runs the SPF algorithm to recalculate its shortest-path tree and its forwarding database.

정답: B

설명: (Fast2test 회원만 볼 수 있음)
