[2026] Cisco Troubleshooting Cisco IP Telephony & Video v1.0

문제1

Which two items are displayed by checking the VCS via Status > Registration? (Choose two.)

A. endpoint name

B. device type

C. device pool

D. device description

E. endpoint MAC address

정답: A,B

문제2

Which CLI command monitors ILS replication progress?

A. utils ils lookup

B. utils ils findxnode

C. utils ils show peer info

D. utils ils showpeerinfo

정답: D

문제3

An engineer implemented a new voice gateway using H.323 to integrate with Cisco Unified Communications Manager (CUCM) and is experiencing issues routing calls via the gateway, even though the network connectivity is working. The engineer wants to verify that the gateway is properly configured. What is an indication of correct configuration?

A. Successful ping from CUCM to the gateway

B. Gateway registration status in CUCM

C. Trace route from the gateway to CUCM

D. Gateway IP address in CUCM

정답: D

문제4

When the command utils dbreplication status is executed on the Cisco Unified Communications Manager CLI, which step should be taken next to check the database replication status?

A. Restart the Cisco CallManager service.

B. Run the same command on all nodes of the cluster.

C. The command utils dbreplication runtimestate must be run on the publisher.

D. View the activelog file.

E. The command utils dbreplication runtimestate must be run on the subscriber.

정답: D

문제5

An end user at a remote site is trying to initiate an Ad Hoc conference call to an end user at the main site. The conference bridge is configured to support G.711. Remote user's phone only supports G.729. The remote end user receives an error message on the phone: "Cannot Complete Conference Call." What is one cause of the issue?

A. The transcoder resource is missing.

B. A Media Termination Point is missing.

C. The remote phone does not have the conference feature assigned.

D. A software conference bridge is not assigned.

정답: A

문제6

A system administrator receives a help ticket stating that users at a remote office are unable make three-way calls What should the administrator do in the cisco Unified Communications Manager configuration to troubleshoot the issue?

A. Check the media resources for a registered conference bridge and ensure that it is assigned to the right Media Resource Group for that office.

B. Check the media resources for a registered conference bridge and ensure that it is added to the correct region for that office.

C. Check the media resources for a registered Media Termination point and ensure that it is assigned to a location for that office.

D. Check the media resources for a registered Media Termination point and ensure that it is added to the correct Media Resource Group for that office.

정답: A

문제7

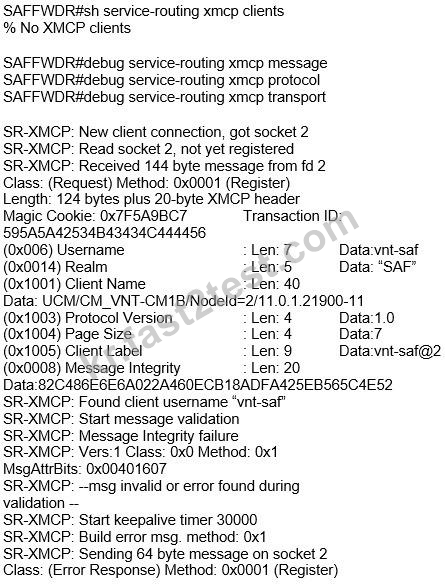

Refer to the exhibit. In a multicluster environment using Call Control Discovery to advertise patterns between clusters, advertisements from one cluster are not propagating to other clusters. The output in the exhibit comes from the Cisco SAF Forwarder configured on this cluster. Why are advertisements failing?

A. The SAF security profile password is incorrect

B. The SAF client label is incorrect

C. The SAF advertising service is not enabled

D. The message integrity key is incorrect

정답: A

문제8

An engineer is troubleshooting an issue where the SAF Forward is rejecting messages from Cisco Unified Communications Manager. The engineer suspects there is an issue with the client label. Which rule does the engineer check?

A. The client label cannot contain an underscore.

B. The client label cannot contain a space.

C. The client label cannot contain the @symbol

D. The client label cannot contain more than 20 characters.

정답: D

문제9

An engineer is troubleshooting an issue in a customer environment where conference is not functioning on the Cisco TelePresence Server. Which two causes of this issue are true?(Choose two.)

A. The status of the conference is enabled.

B. The activation key has been lost

C. API access is not properly provisioned

D. The status of the conference is not active.

E. WebAccess is disabled for the user.

정답: B,D

문제10

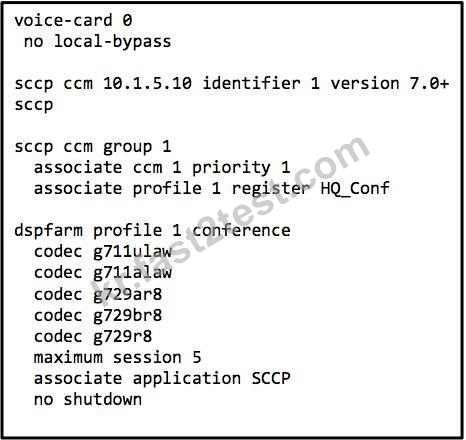

Refer to the exhibit.

You're tasked with staging configuration changes to add conference bridge functionality to an existing IOS voice gateway deployment. What command is missing for the configuration to be accepted by the IOS CLI?

A. The command maximum conference-participants must be configured under the dspfarm profile.

B. The command dsp services dspfarm must be configured under the voice-card configuration.

C. The Enhanced IOS Conference Bridge is not configured in Cisco Unified Communications Manager.

D. The dsp tdm pooling command under the voice-card is missing.

E. The dspfarm command under the voice card is missing.

정답: B
